Helai baja sing ora dibuntel umume digunakake kanggo ngasilake komponen konkrit gedhe, medium lan cilik kanthi macem-macem bentuk struktural ing siji, cara tegang pungkasan lan sing terakhir. Kayata sepur gedhe, jembatan gedhe, truss gendheng, balok derek, panel prefabrikasi industri lan sipil, panel tembok, tumpukan pipa, tiang telepon lan pipa air beton, menara televisi, pembangkit listrik tenaga nuklir, lan proyek konstruksi liyane.
|
Konstruksi |

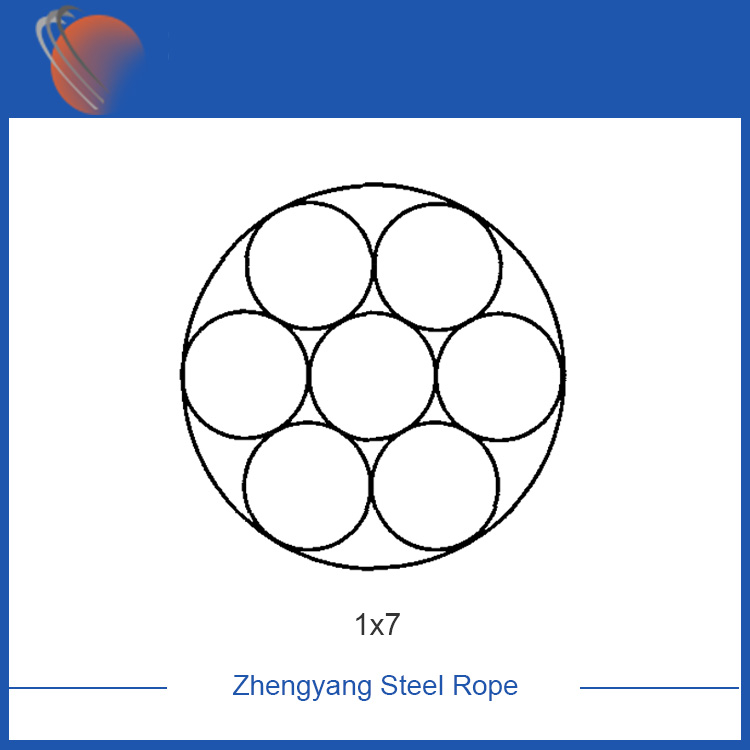

1 × 7 |
||||||
|
Dia.Strand mm |
Dia.mm |
Mm mm bagean2 |
Kira-kira Bobot / (KG / 100M) |
Kekuwatan Nominal / MPa |
|||
|
1270 |
1370 |
1470 |
1570 |
||||
|
Mbuwang Minimal Strand Baja / KN |
|||||||
|
3.0 |
1.00 |
5.50 |
4.58 |
6.42 |
6.92 |
7.43 |
7.94 |
|
3.3 |
1.10 |
6.65 |
5.54 |
7.77 |
8.38 |
8.99 |
9.60 |
|
3.6 |
1.20 |
7.92 |
6.59 |
9.25 |
9.97 |
10.70 |
11.40 |
|
3.9 |
1.30 |
9.29 |
7.73 |
10.80 |
11.70 |
12.50 |
13.40 |
|
4.2 |
1.40 |
10.78 |
8.97 |
12.50 |
13.50 |
14.50 |
15.50 |
|
4.5 |
1.50 |
12.37 |
10.30 |
14.40 |
15.50 |
16.70 |
17.80 |
|
4.8 |
1.60 |
14.07 |
11.71 |
16.40 |
17.70 |
19.00 |
20.30 |
|
5.1 |
1.70 |
15.89 |
13.23 |
18.50 |
20.00 |
21.40 |
22.90 |
|
5.4 |
1.80 |
17.81 |
14.83 |
20.80 |
22.40 |
24.00 |
25.70 |
|
6.0 |
2.00 |
21.99 |
18.31 |
25.60 |
27.70 |
29.70 |
31.70 |
|
6.6 |
2.20 |
26.61 |
22.15 |
31.00 |
33.50 |
35.90 |
38.40 |
|
7.2 |
2.40 |
31.67 |
26.36 |
37.00 |
39.90 |
42.80 |
45.70 |
|
7.8 |
2.60 |
37.16 |
30.93 |
43.40 |
46.80 |
50.20 |
53.60 |
|
8.4 |
2.80 |
43.10 |
35.88 |
50.30 |
54.30 |
58.20 |
52.20 |
|
9.0 |
3.00 |
49.48 |
41.19 |
57.80 |
62.30 |
66.90 |
71.40 |
|
9.6 |
3.20 |
56.30 |
46.87 |
65.70 |
70.90 |
76.10 |
81.30 |
|
10.5 |
3.50 |
67.35 |
56.07 |
78.60 |
84.80 |
91.00 |
97.20 |
|
11.4 |
3.80 |
79.39 |
66.09 |
92.70 |
100.00 |
107.00 |
114.00 |
|
12.0 |
4.00 |
87.96 |
73.22 |
102.00 |
110.00 |
118.00 |
127.00 |
